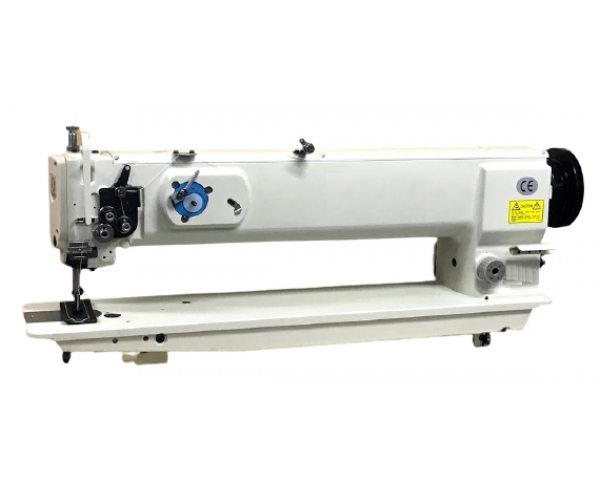

1-Needle Compound Feed Walking Foot Sewing Machines Longarm 25” (635mm) with Built-in Bobbin Winder

Item No. :  EM-1541-25

1-Needle Compound Feed Walking Foot Sewing Machines Longarm 25” (635mm) with Built-in Bobbin Winder

Inquiry Download

Details


Mod. EM-1541-25      longarm 25” (635mm)

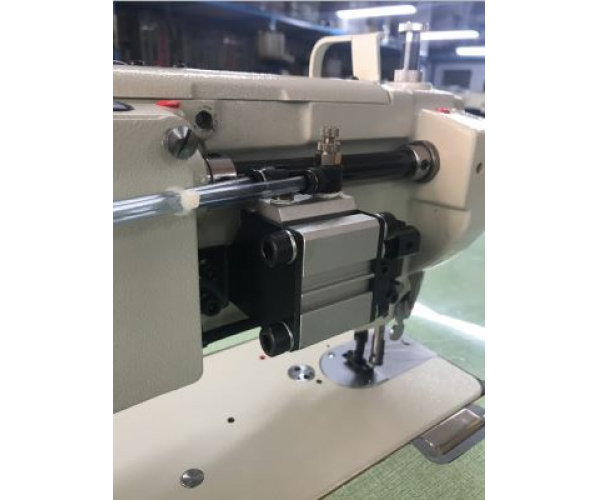

         EM-1541-25-FL  with pneumatic auto foot lifter

         EM-1541-25-BT  with automatic backtack and foot lifter



FEATURE:

˙ With the adoption of a new rectangular feed mechanism, an alternating

vertical movement mechanism and a unision-feed mechanism, the machine

can feed heavy material powerfully and smoothly. Well tensed seams are

consistently produced without pitch errors.

˙ The machine has adopted a dual-tension mechanism, with which the machine

    can support.

˙ High-tension sewing with thick thread. This means that the machine produces



    seams of excellent quality on a broader range of materials, extending from

     light-to heavy-weight.

˙ With 9mm maximum stitch length, 36mm needle bar stoke, and 175mm

extra large steel hand-wheel, the machine supports the sewing of extra

     heavy materials.


Max.   sewing speed

1,800   s.p.m.

Working   space

635   mm (25”)

Max.   stitch length

9   mm

Needle   to be used

 DPx17 #23

Lift   of the presser foot

9   mm by Hand

16   mm by Knee

Needle   system

#20   ~ #25

Alternating   vertical movement

2.5~6.5   mm

Thread

#30   ~ #5

Needle   bar stroke

36   mm

Motor   to be used

Clutch   Motor, 1/2HP,4P
