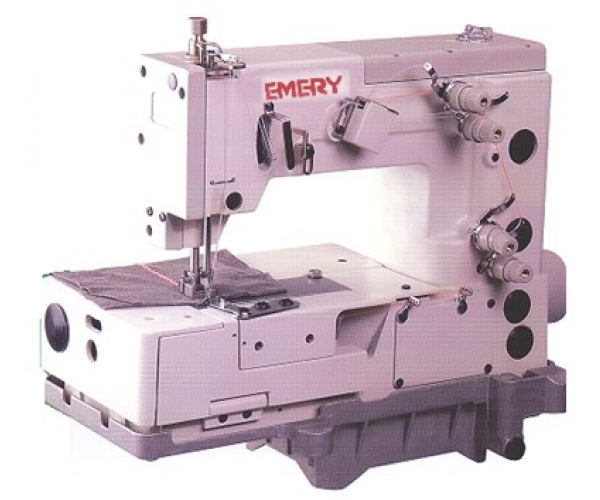

Mod. EM-1302W      Made inTaIwan

(as illustrated)(4-point)

2-needle Double Chain Stitch, 4-Point (3-Step)

Zigzag Machine for Picotting

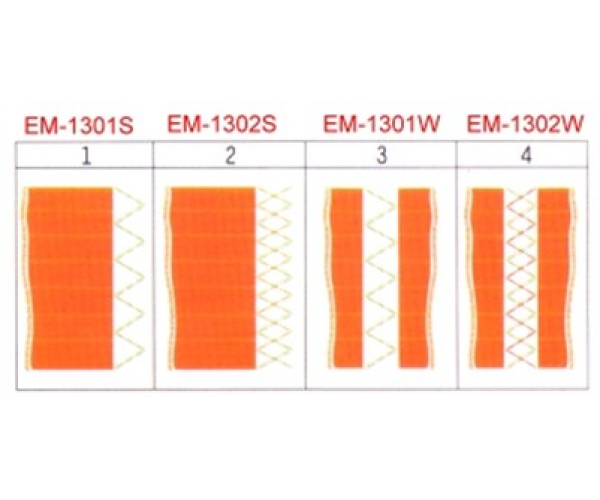

mod. EM-1302W-5  (5-point)

mod. EM-1301W    1-needle

mod. EM-1301S  .  1-needle

mod. EM-1302S   .. 2-needle

FEATURE:

l Adopting differential feeding, applied in sewing cloths of various different             thickness from thinness to medium thickness.

l Through cam mechanism embedded inside the gear to allow needle to

    move leftward or rightward, namely moving in four-point herring bone to

     sew toothed trims by generating double-chain stitching.

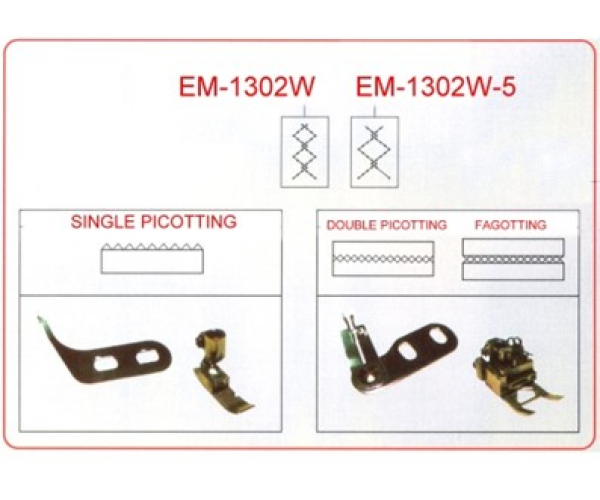

l Through interchanging different presser feet and special-specification

     parts to result in single-thread or double-thread teethed trim sewing.

l Through interchanging different presser feet and special-specification

     parts to result in single-thread or double-thread teethed trim sewing.

    SPECIFCATIONS:

1.      Max. Speed      : 3,500 r.p.m.

2.      Needle Bar Stroke : 31mm

3.    Needle Type     .: uox163

4.    Foot Lifter       .: 8mm

5.    Differential Ratio  : 0.8 ~ 1.5mm
