Gauge Parts for Juki PLC-2760-7, 2760, 2765 etc.
Item No. : JK2760-7GA-6mm ..(#401-71203)
Gauge Parts for Juki PLC-2760-7, 2760, 2765 etc.
InquiryDetails
Needle gauge size : 6mm, 8mm, 10mm & 12mm
Complete gauge set 7-piece. Each consists of center guide outside foot, inside foot, needle plate, feed dog, needle clamp and feed lever base cover (x2)
Item No.
#JK2760-7GA-6mm ..(#401-71203) complete gauge set 7-piece 6mm
#JK2760-7GA-8mm ..(#401-71205) complete gauge set 7-piece 8mm
#JK2760-7GA-10mm (#401-71210) complete gauge set 7-piece 10mm
#JK2760-7GA-12mm (#401-71224) complete gauge set 7-piece 12mm

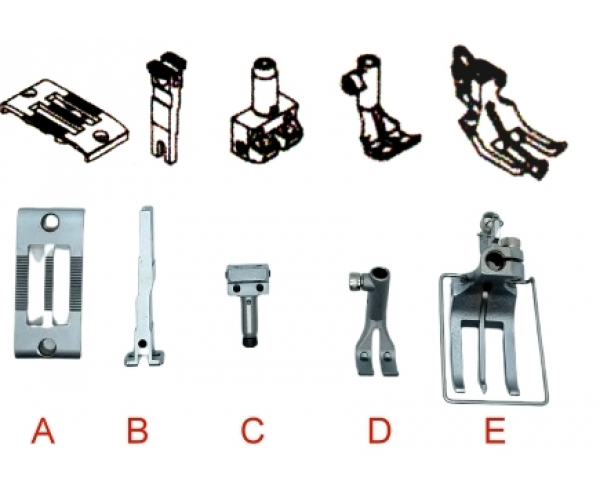

A: Needle plate for undertrimmer PLC-2760-7
#401-30927 6mm, #401-30908 8mm, #401-30064 10mm, #401-30928 12mm
B: Feed dog for PLC-2760, PLC-2760-7 & PLC-2765
#401-30925 6mm, #401-30907 8mm, #401-30062 10mm, #401-30926 12mm
C: Needle clamp for PLC-2760, PLC-2760-7
#400-38778 6mm, #400-38776 8mm, #400-38774 10mm, #400-38772 12mm
D: Feed foot (inside foot) for PLC-2760, PLC-2760-7, PLC-2765
#400-38854 6mm, #400-38852 8mm, #400-38850 10mm, #400-38848 12mm
E: Outside foot w/center guide for PLC-2760, PLC-2760-7, PLC-2765
#400-38810 6mm, #400-38808 8mm, #400-38806 10mm, #400-38802 12mm

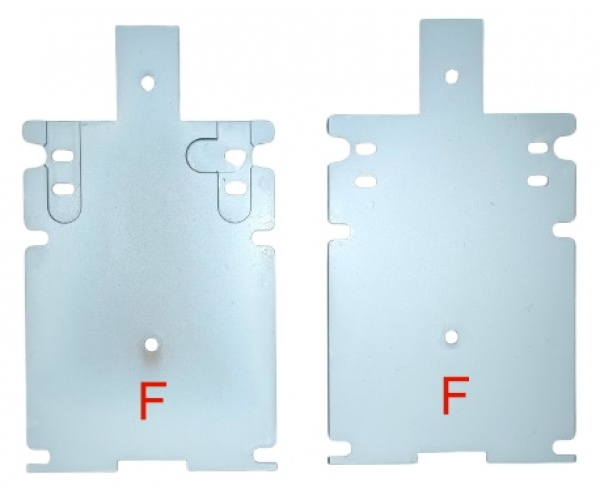

F: Feed lever base cover asm. for PLC-2760, PLC-2760-7, PLC-2765, PLC-2760L
#401-34017 6mm, #401-34018 8mm, #401-34019 10mm, #401-34020 12mm
