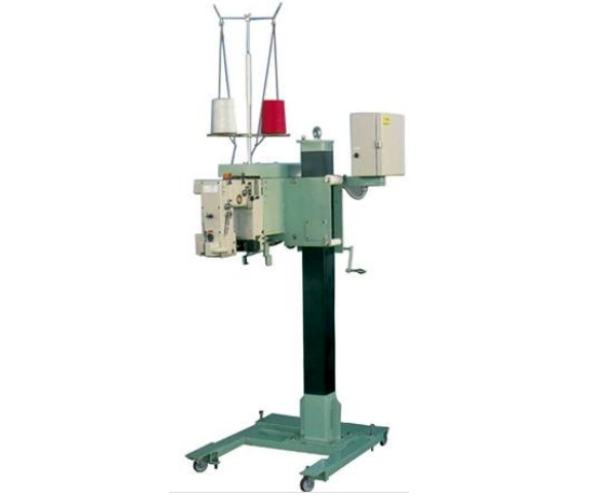

#EM-9000PB Pedestal (pillar) with “NLI” DS-9C sewhead
Emery offers the latest in filled bag closing technoledge with height
adjustable bag closing machine and “NLI” brand DS-9C high speed, oil enclosed bag sewing head. This system is equipped with vector drive technology which allows for easy speed matching to existing conveyors, promotes maximum speed flexibility, and facilitates fast start / stop sewing action that reduces material cost. It also provides an attractive and
consistent finished product
SPECIFICATIONS | |
Sewing Head Height | 720-1,220mm from floor to needle |
Brake Motor | 4P, 3 Phase, 0.75kW or 0.4kW depends on conveyor speed |
Start/Stop | Photo-switch |
Sewing Head | Model DS-9C |
Max. Speed | 2,700r.p.m. |
Stitch Width | 7-10.5mm (standard setting 10mm) |
Stitch Type | Single Needle, Double Thread Chain Stitch (single thread available by special order) |
Cutter Type | Air Cylinder Driven Guillotine Cutter |
Air Pressure | 4 kg/cm2 |
Air Consumption | 3.5NL/min. |
Lubrication System | Automatic Oil Bath System Shell Tellus Oil #32) |
Oil Feeding Volume | 1,740 cc (approx.) |
Machine Pulley Dia. | 100 mm, Variable speed pulley available by special order |
Needle Type | DR-H30 #26 |
Thread | Synthetic or Cotton, 20/6, 20/9 |
