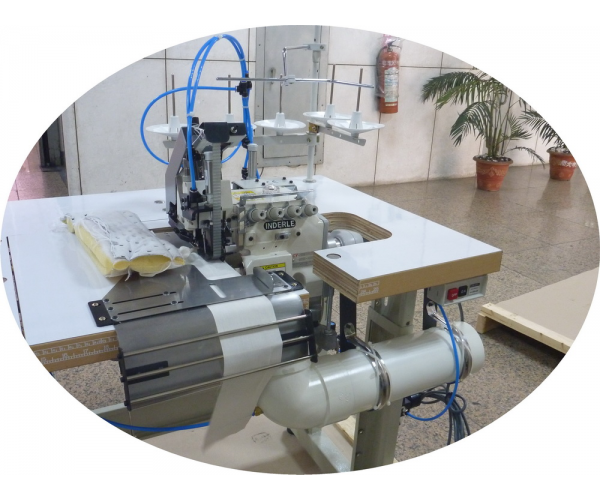

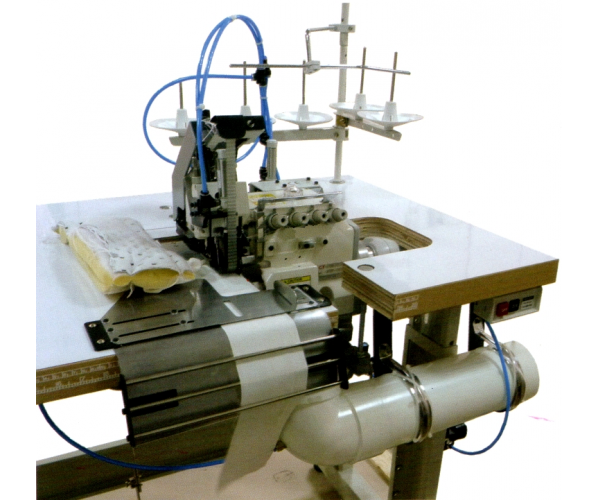

Top Belt Drive Mattress Flanging Machine

Item No. :  MF-2050TB

Top Belt Drive Mattress Flanging Machine

Inquiry Download

Details


High Speed with Twin Needle Bar & Extra High Needle Bar Stroke 13mm Above Needle Plate !

mod. MF-2050TB



Features:



* Max. sewing speed. : 4,000 r.p.m.

* Needle gauge : 20mm (13/16” or .787”)

* Extra high needle bar 13mm above needle plate.

* Extra high upper looper 11mm above needle plate.

* Extra wide upper & lower knives.

* Panel thickness : 64mm (2-1/2”) foam+ (13mm) 1/2”fabric.

* Pneumatic foot lifter.

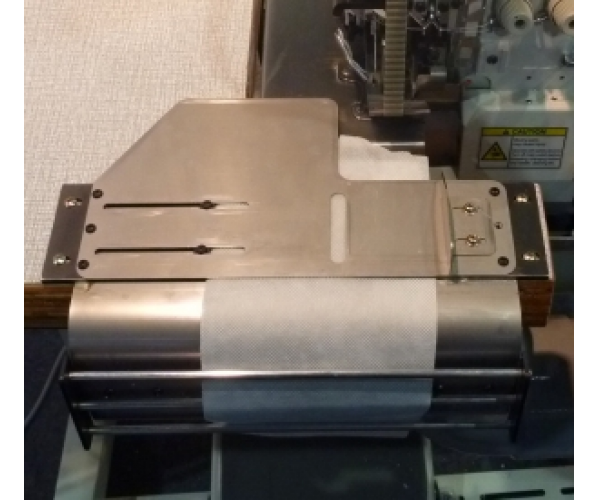

* Powerful top belt feeding – 13mm wide belt.

* Stitch length : 5.5mm about 4.5 SPI

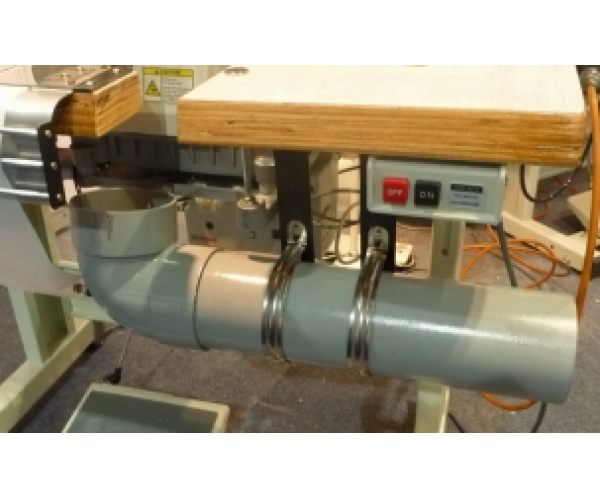

* Strong waste–removal system.
