Suspending Edge Guide Set Durkopp/Adler 467, 767, 867 & Juki, Pfaff, Seiko etc.

G867 (#MAH-15201-0A0)

Suspending Edge Guide Set Durkopp/Adler 467, 767, 867 & Juki, Pfaff, Seiko etc.

Item No. :  G867 (#MAH-15201-0A0)

Suspending Edge Guide Set Durkopp/Adler 467, 767, 867 & Juki, Pfaff, Seiko etc.

Inquiry

Details

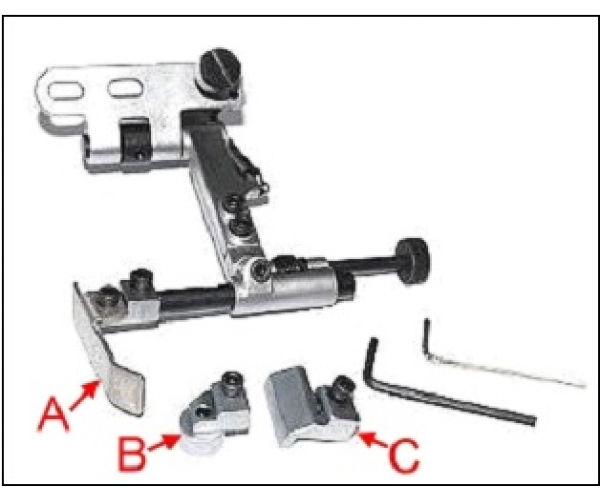

Durkopp/Adler - Practical Suspending Edge Guide G867 (G767) (GB-6)(MAH-15201-0A0)  complete with long straight guide, zipper guide and roller gauge dia. 14mm.



  • Can be attached to leather sewing machines from Durkopp/Adler, Juki, Seiko/Consew, Highlead, Pfaff, Singer and more but you might need to drill and tap screw hole to mount this guide.

  • This is a combined hinged roller and straight stop adjustable guide which can be adjusted in height and raised up when not in use.

  • This guide is especially designed to attach to the upper body of the sewing machine so that it would not interfere with the movement of the material on the flat bed.

  • It is useful for sewing on thick leather or other heavy materials. It allows you to precisely sew on delicate corner.

MACHINE COMPATIBILITY:

Durkopp/Adler  267, 268, 269, 367, 467, 667, 669, 827, 838, 767, 768, 867, 868, 887, 888, 1767 etc. and Juki Models:  DNU-1541/241 Series, LU-1508/2810/2860 Series; Pfaff 335, 345, 346, 1245, 1246, 1295, 1296, 1525, 1526

N.B.  When ordering, please specify machine make and model.
